Automatic Registration of Your Environment for Shared, Headset-Free Immersive Experiences
What Is
?
ARtemis™ is Summit Tech Lab’s patented spatial registration software, serving as the core of our hardware-agnostic Shared Augmented Reality (SAR) system.
ARtemis™ starts by using structured light to create a model of the as-built shape of every surface in a space. Because the environment is measured rather than modeled, there is no CAD file to supply, no markers to place and no LIDAR scan to schedule. When something shifts, ARtemis measures again automatically.
Using the measured model, we can augment the environment.
is…
- On any surface.
- Any shape and size.
- Using any handheld.
- Registered in minutes.
- Kept aligned for years.
: Behind the Name
AR
ARtemis™ augments the visual experience.
-temis
Greek root meaning "that which is set in place." ARtemis perfectly aligns digital content on sensed surfaces to augment the real environment
How Works
ARtemis™ uses structured light to measure the room and objects within it. The resulting “as-built” model then allows users to augment that reality with projected light across any surface. WIth ARtemis™, registration and alignment takes mere minutes, not hours or days.
1. Sense
Standard cameras
watch a sequence of structured-light patterns, with the room lights on.
2. Model
ARtemis™ reconstructs the as-built surface automatically. No shape file, no markers, no LIDAR.

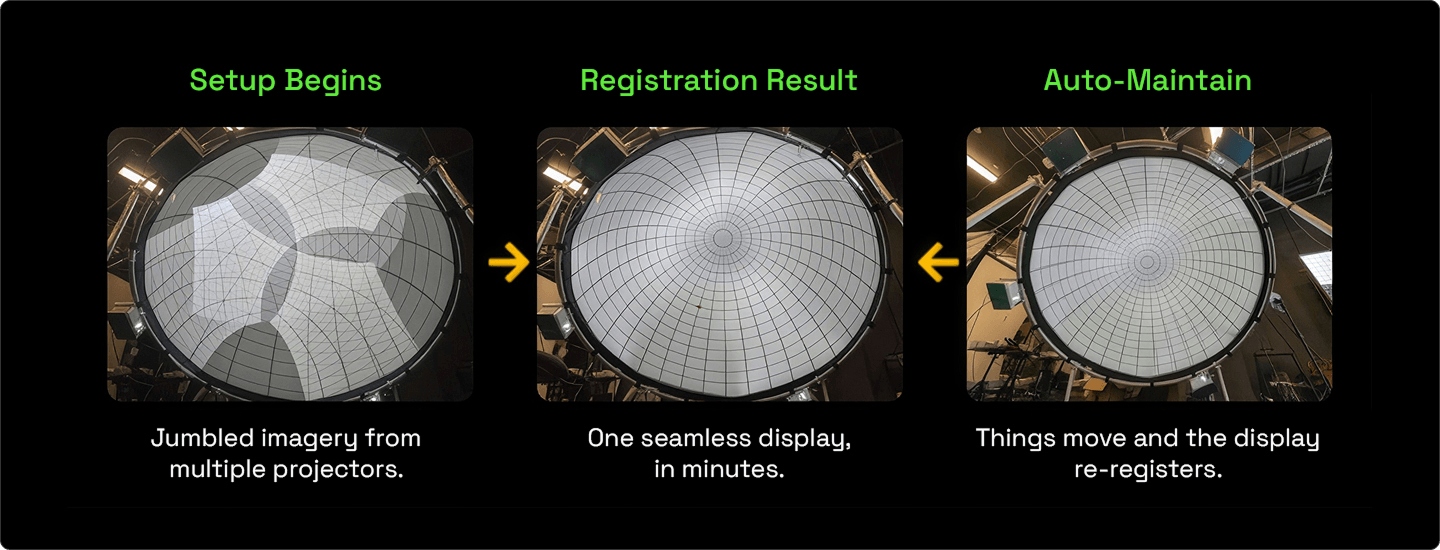

3. Correct
Geometry, blending, color and brightness are corrected across every projector, to sub-pixel registration in overlaps.
4. Publish
The correction goes to the renderer or media server the venue already runs, including Unreal Engine.
5. Verify
ARtemis™ re-measures on a schedule or between shows and corrects drift before the audience sees it.
Advantages at a Glance
Push Button Setup:
Automatic scan to SAR, no shape file, markers, or LIDAR needed.
Always Aligned:
Automatically scheduled remeasurement corrects drift, meaning less dark time.
Hardware Agnostic:
Seamlessly integrates with standard projectors, cameras, and IT systems.
Lower Lifecycle Cost:
Faster installs and fewer technician hours. Just engine across applications.
Ready to Scale:
Turn any surface into a display, regardless of size, shape, or contours.
Immersive Visuals:
Even in ambient light, craft an SAR experience with crisp visuals and powerful color.
Where Sits on The XR Continuum
Reality
The physical room
Shared AR
Projection on real surfaces or displayed on geo-registered handhelds Shared by the group
Personal AR
Headset or handheld overlay
One viewer at a time
Virtual Reality
Fully simulated world
One viewer
Shared AR: Immersive Experiences - Together
ARtemis™ enables simulation-grade delivery of digital content that can be anchored at life scale to anything that can be illuminated. Its rapid registration allows for projection on any surface, regardless of size and shape. Buildings, walls, floors, statues, products, entire rooms—if it can reflect light, ARtemis™ can create an immersive experience that can be seen by everyone at once.
| Shared AR (ARtemis™) | Personal AR (Headset) | |
|---|---|---|
| Participants | Everyone at once | One viewer per device |
| Frame of Reference | Optimized dynamic eyepoint or static to suit application | Dynamic (moves with your head) |
| Social Engagement | Collaborative and interactive | Isolated and interactive |
| Hardware | One system for all participants | 1 device:1 person to fit, clean, charge, & repair/replace |
What Sets Apart
| Feature | Advantage | Benefit |
|---|---|---|
| No shape file, no markers, no LIDAR | Deduces the as-built screen shape itself | Faster setup, less skill required, no site survey to schedule |
| Minutes, not days | Fast push-button registration between groups of users | Increase in theoretical throughput per hour |
| Any surface, including deformable | Domes, cylinders, sculptural sets, inflatables, shelter fabric | Designers aren't limited to shapes the software can handle |
| Verification on a cadence | Scheduled re-registration catches drift from temperature, structural shift or relocations. | The display looks right every day, not just on install day |
| Sub-pixel accuracy across the whole array | Registration holds in the entire 3D space, including projectors. | Text and fine detail stay crisp at the seams |
| Open and projector-agnostic | Mix brands, models and grades; keep the media server you own | No closed stack; hardware choices stay yours |
| Works in the light | Scan more often because no need to go lights-out | The display looks better day in and day out. |
| Multi-user interaction | Laser-pen and tablet input on the augmented display surface | Groups point, mark up and decide together; |
See in Action
Direct Measurement of the Room. No Model Required.
ARtemis™ uses any number of projectors to scan the built environment and integrate one seamless display that a whole group experiences together. Precision and display integrity are preserved across display types—large or small, static or deformable, front or rear projection, consumer or professional hardware. We work with your preferred hardware and design team, remove the technical challenges, and make the technology work for you

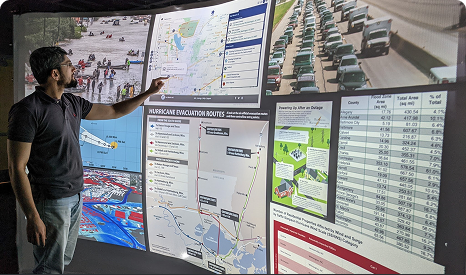

Immersive C2/Mission Rehearsal
Expeditionary Command and Control
Virtual Air Traffic Control
Discovery Cube Science Center
2.5 min setup
24’W x 24’H cylinder, 3 projectors

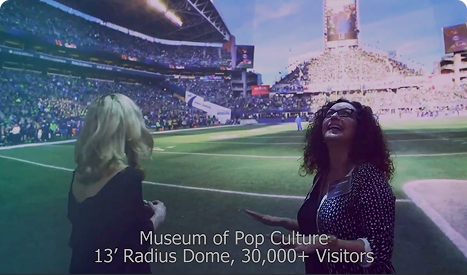

“Holodome,” Museum of Pop Culture
5 min setup
26’D inflatable dome, 5 projectors

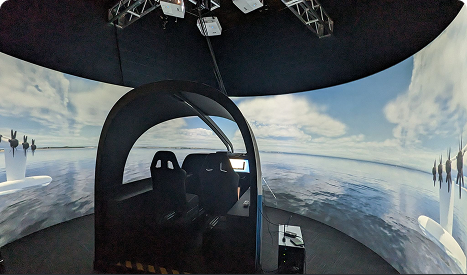

REGENT Simulator
2.5 min setup
230, 30’L x 9’H cylinder, 3 projectors
